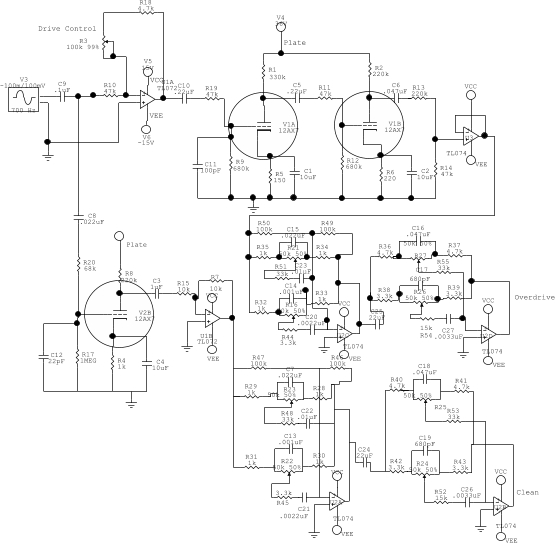

Tube Hybrid Audio Preamp - © BZTRONICS
This is a neat tube hybrid guitar amp circuit. Add a pre-built power amp or your own power amp and you get a very nice boutique amp with your own original sound.
It is a fun project for more advanced electronics enthusiasts and budding design engineers. This tube amp is very promising for guitar players. It is not all tube, however it will work great with a MOSFET or TUBE output stage.
Click the image above to see a larger image - right click to save
